Another Successful Heat Siphon Installation

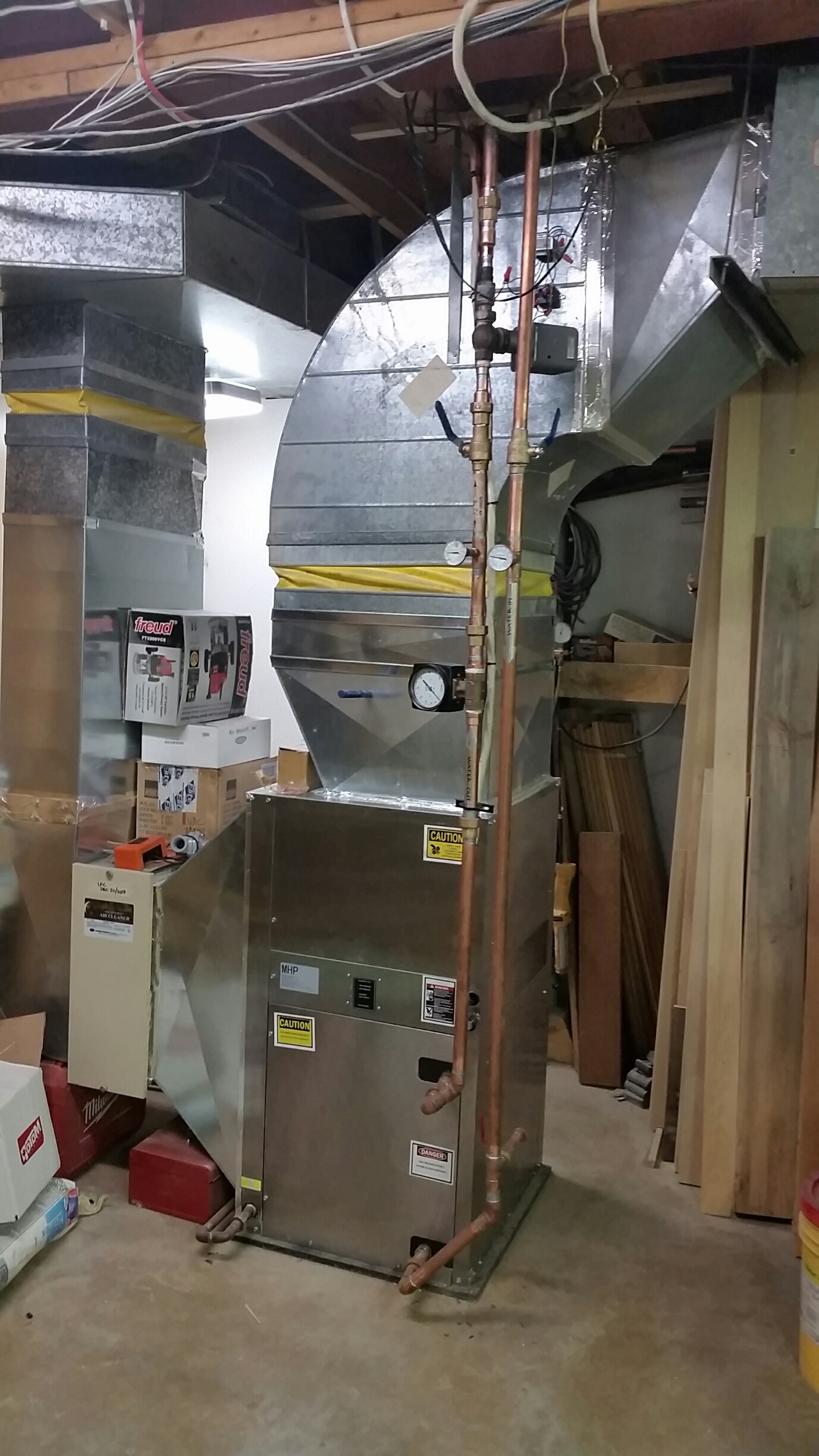

Heat Siphon Z575 new installation in Memphis Tennessee. Heat pumps has been running since the beginning of March in a cold weather state.
Throws off a lot of heat, plenum temperature is about 107F, uses between 16-18GPM. I monitor flow and waste-water temp. Incoming water is generally around 44F, waste-water 33F. System is very quiet (I have everything isolated on rubber pads and flex joints).
So far: very happy.
Cheers!
Peter
For prices and detailed information, please, give us a call: 1 888 205 7766

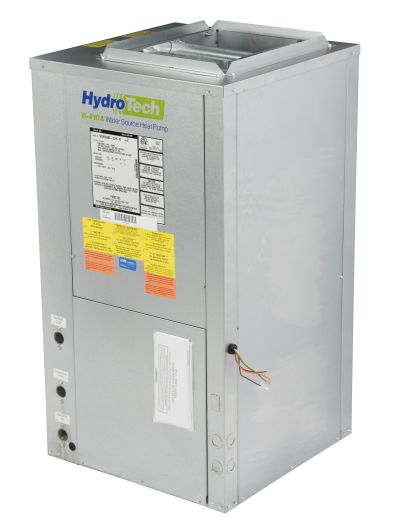

This is the HydroTech WSVC Series (C-PSC ) Vertical Water Source Heat Pump.
They are available in eight sizes from 1.5 Ton to 5 Ton.
Optional voltages include 208/230V-1-60, 265V-1-60 for all sizes, and 208/230V-3-60, 460V-3-60 for 3 Ton to 5 Ton.
All units operate with environmentally friendly R-410A refrigerant.
Cabinets insulated with ¾” Tuf-Skin RX™ treated with an anti-microbial agent.
Non-corrosive Thermoplastic Condensate Pan, sloped for positive drainage.
High and Low pressure Service Ports. Refrigerant Filter-drier and Discharge Muffler.
Coaxial Water-To-Refrigerant Heat Exchanger.
Heat exchanger available in Copper or Cupronickle Digital Control Module (DCM).
Multi-speed blower motor.
Panel-mounted FPT Water Connections.
High efficiency rotary, scroll or reciprocating compressor.
System reversing valve (4-way) Large Removable Panels for Service access.
50 VA Transformer.
Copper heat exchanger models available by special order. Call for more information 1 888 205 7766
First Co. HydroTech WSVC018N-2RH-FT
Vertical Water Source Heat Pump, 1.5 Ton, Right Hand Return, 208/230-1V
First Co. HydroTech WSVC018N-2LH-FT
Vertical Water Source Heat Pump, 1.5 Ton, Left Hand Return, 208/230-1V
First Co. HydroTech WSVC024N-2RH-FT
Vertical Water Source Heat Pump, 2 Ton, Right Hand Return, 208/230-1V
First Co. HydroTech WSVC024N-2LH-FT
Vertical Water Source Heat Pump, 2 Ton, Left Hand Return, 208/230-1V
First Co. HydroTech WSVC030N-2RH-FT
Vertical Water Source Heat Pump, 2.5 Ton, Right Hand Return, 208/230-1V
$3095.00
First Co. HydroTech WSVC030N-2LH-FT
Vertical Water Source Heat Pump, 2.5 Ton, Left Hand Return, 208/230-1V
First Co. HydroTech WSVC036N-2RH-FT
Vertical Water Source Heat Pump, 3 Ton, Right Hand Return, 208/230-1V
First Co. HydroTech WSVC036N-2LH-FT
Vertical Water Source Heat Pump, 3 Ton, Left Hand Return, 208/230-1V
First Co. HydroTech WSVC042N-2RH-FT
Vertical Water Source Heat Pump, 3.5 Ton, Right Hand Return, 208/230-1V
First Co. HydroTech WSVC042N-2LH-FT
Vertical Water Source Heat Pump, 3.5 Ton, Left Hand Return, 208/230-1V
First Co. HydroTech WSVC048N-2RH-FT
Vertical Water Source Heat Pump, 4 Ton, Right Hand Return, 208/230-1V
First Co. HydroTech WSVC048N-2LH-FT
Vertical Water Source Heat Pump, 4 Ton, Left Hand Return, 208/230-1V
First Co. HydroTech WSVC060N-2RH-FT
Vertical Water Source Heat Pump, 5 Ton, Right Hand Return, 208/230-1V
First Co HydroTech WSVC060N-2LH-FT
Vertical Water Source Heat Pump, 5 Ton, Left Hand Return, 208/230-1V
