Up to 70 EER DC Inverter

Geothermal Heat Pump Embrace comfort with the GeoCool® all DC Inverter Technology. Equipped with the high-precision Electronic Expansion Valve, allowing for more accurate temperature control while also keeping the utility bill down. The flexibility of four independent modules makes it easy to meet the installation requirements of different air outlet methods and applications. Space constraints are less of an issue when a custom built layout is an option! For a long term solution with lower maintenance costs, design your own GeoCool® Inverter Series Geothermal unit.

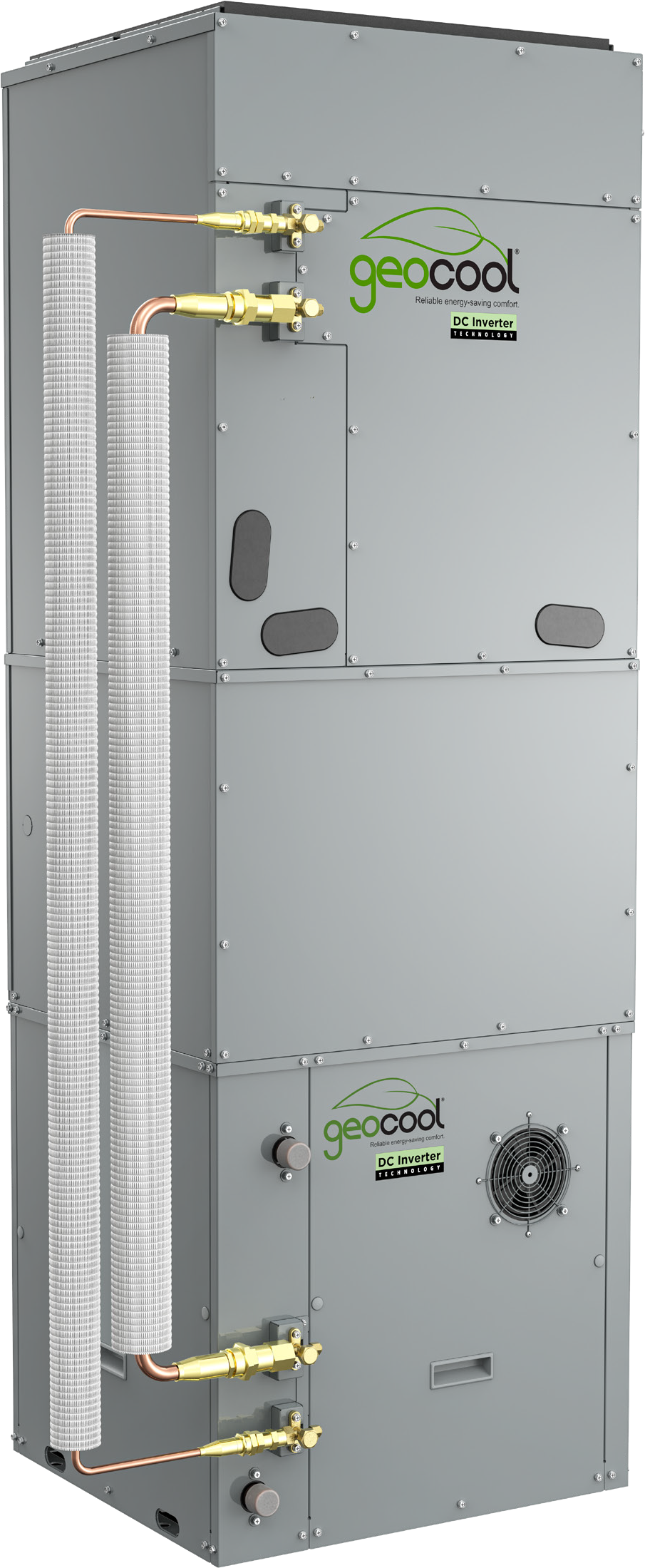

GeoCool Inverter Series

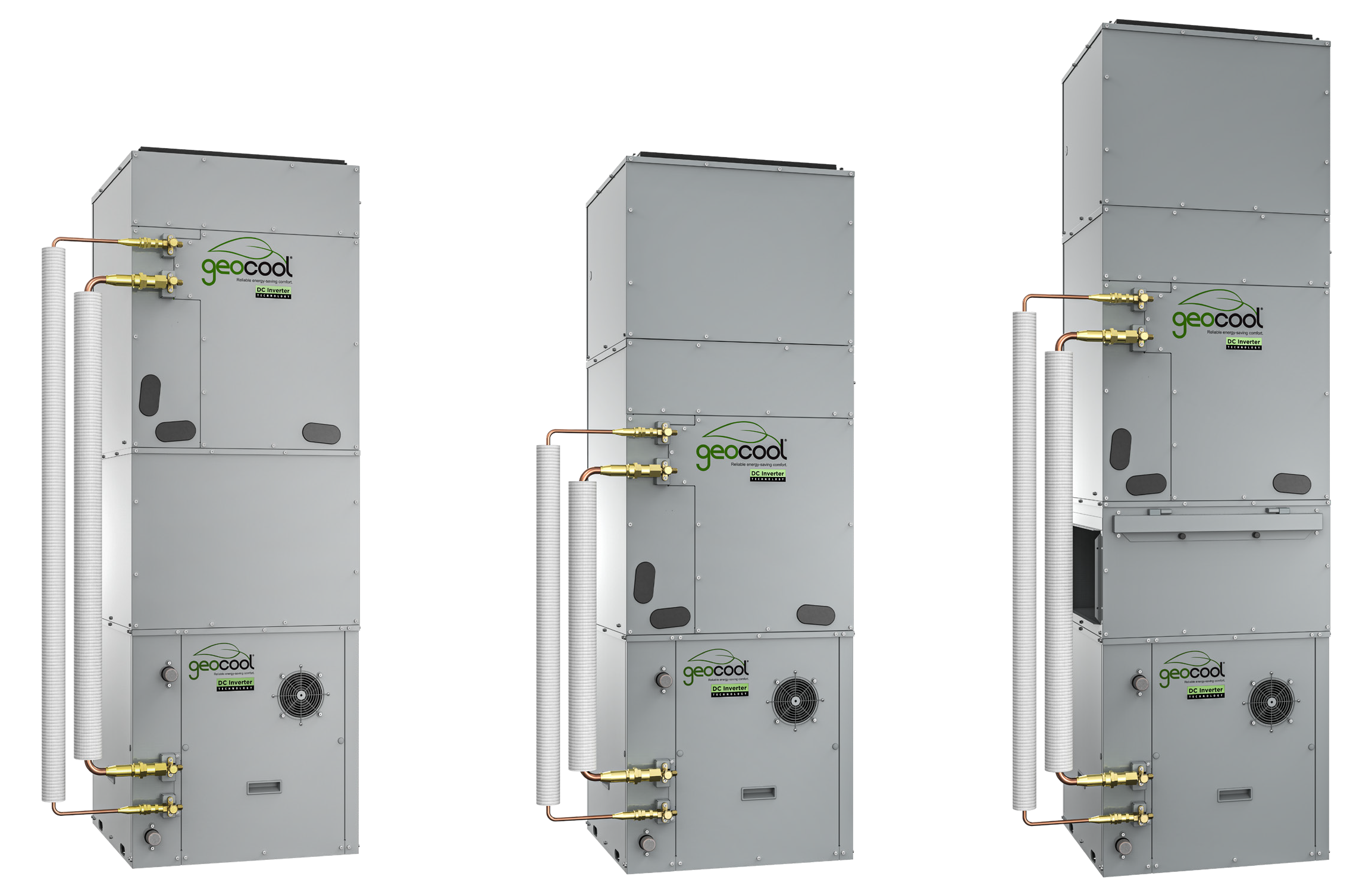

GeoCool Vertical Downflow with pre-charged GeoCool Quick Connect Line Set	GeoCool Vertical Upflow with pre-charged GeoCool Quick Connect Line Set	GeoCool Vertical Upflow with Return Air Box and pre-charged GeoCool Quick Connect Line Set
A-Coil Module: GCSCAM060GN Blower Module: GCSBLM014 Compressor: GCSHPM060IN GeoCool No-Vac Vertical Downflow w/o Air Box 3/8 3/4 Prechg. Lineset: GCNV-VD00-3834	Blower Module:GCSBLM0141 A-Coil Module: GCSCAM060GN Compressor: GCSHPM060IN GeoCool No-Vac Vertical Upflow w/ Air Box 3/8 3/4 Prechg. Lineset: GCNV-VUAB-3834	Blower Module: GCSBLM0141 A-Coil Module: GCSCAM060GN Return Air Box Module: GCSAR048060 Compressor: GCSHPM060IN GeoCool No-Vac Vertical Upflow w/Air Box 3/8 3/4 Prechg. Lineset: GCNV-VU00-3834

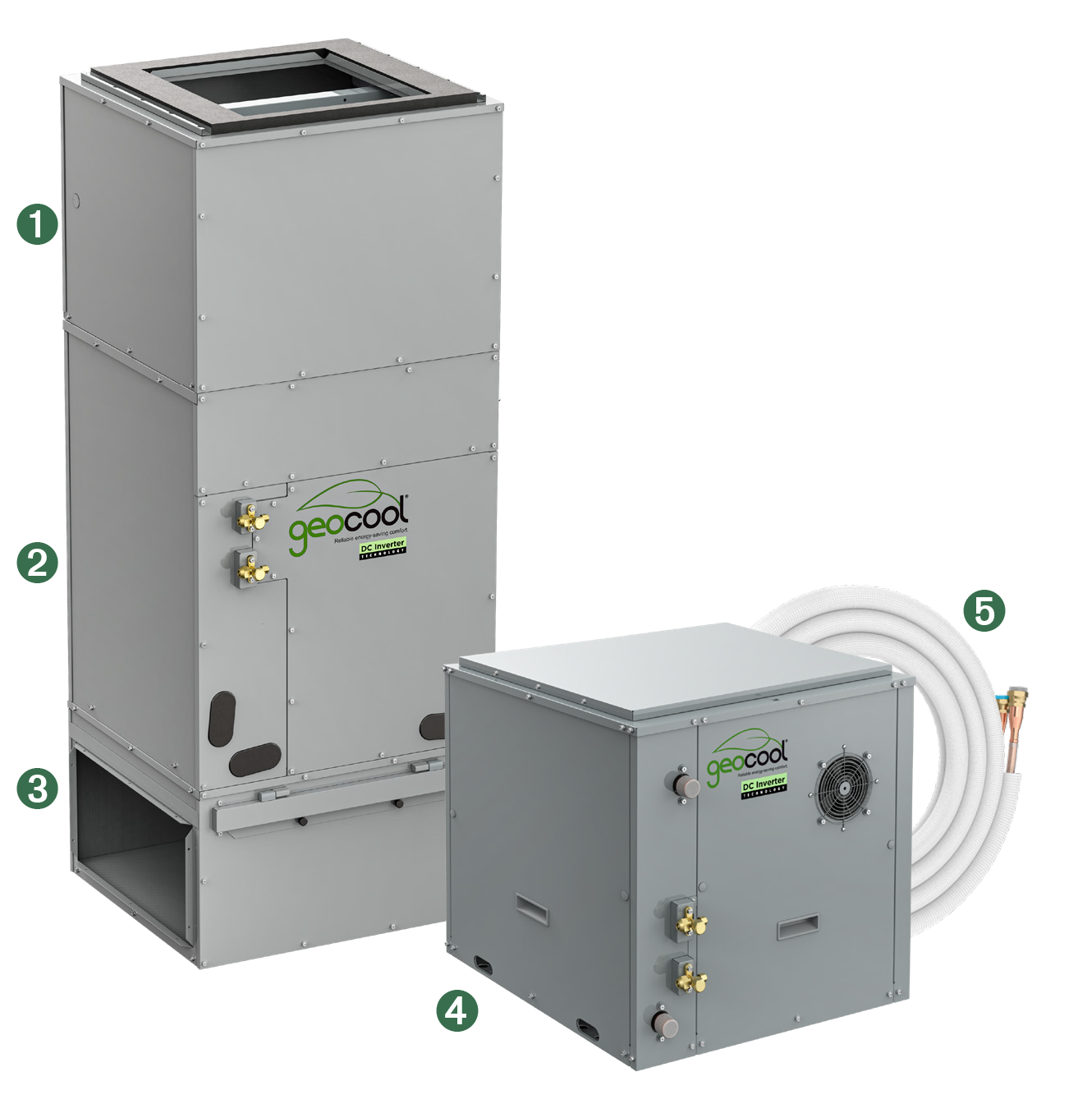

GeoCool Vertical Split System with Return Air Box
and MRCOOL Pre- Charged Line Set

If limited access is a space constraint, a Vertical Split system may be the ideal configuration. A Vertical Split configuration would include a stand alone Compressor Module, separate from the A-coil Module, Blower Module, and Return Air Box. This system would require the use of the MRCOOL No-Vac Quick Connect line set. MRCOOL offers multiples lengths for various application requirements.* To build this configuration, all items will need to be selected and purchased individually.

From top to bottom, this configuration includes the following units:

Blower Module: GCSBLM0141 A-Coil Module: GCSCAM060GN Return Air Box Module: GCSAR048060 Compressor: GCSHPM060IN MRCOOL No-Vac Quick Connect line set: NVXX-3834 *Refer to MRCOOL Pre-Charged Line Sets for selection.

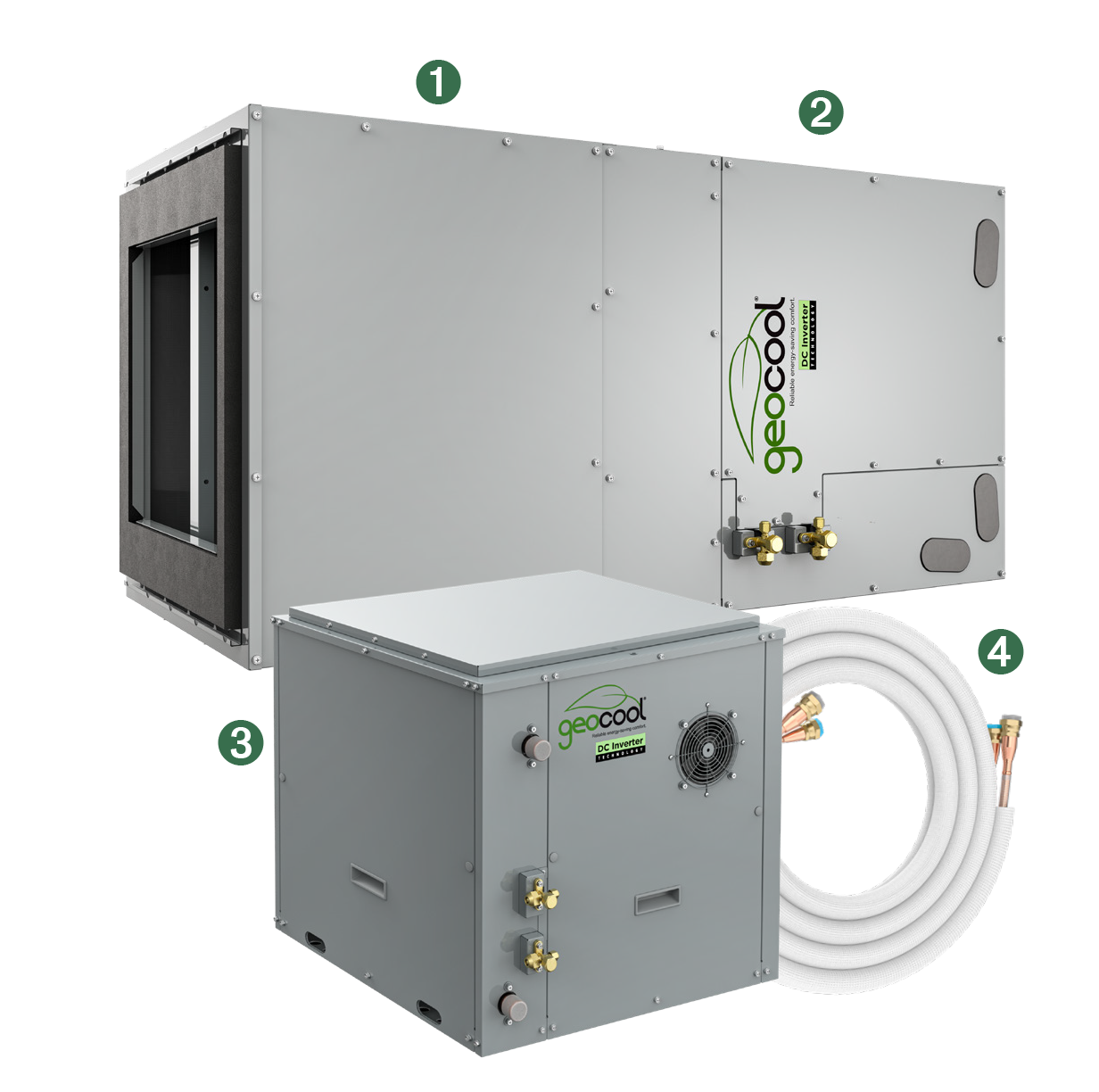

GeoCool Horizontal Split System with
MRCOOL Pre-Charged Line Set

If there is limited access to a space, a Horizontal Split system may be the choice. This split configuration would include a stand-alone Compressor Module, separate from the A-coil Module and Blower Module in a horizontal orientation.
This system would require the use of the MRCOOL No-Vac Quick Connect line set. MRCOOL offers multiples lengths for various application requirements.* To build this configuration, all items will need to be selected and purchased individually.

From left to right, this configuration includes the following units:

Blower Module: GCSBLM0141 A-Coil Module: GCSCAM060GN Compressor: GCSHPM060IN MRCOOL No-Vac Quick Connect line set: NVXX-3834 *Refer to MRCOOL Pre-Charged Line Sets for selection.

Benefits of Geothermal

Geothermal heating & cooling is the most economical, clean, non-polluting, proven heating & cooling technology available today. It will save you up to 80% of the cost of heating and cooling compared to a conventional system. For every unit of energy used to operate the system, 3 to 4 units of energy are produced. Geothermal heating & cooling uses a renewable energy resource available from your own property.

QUALITY AND PERFECTION

Quality and perfection is the core of our business. While other producers normally utilize Galvalume, Aluminum-zinc Alloy cabinets or other materials in the their production. GeoCool takes extra consideration and attention to every unit’s quality. All our standard products are built mostly from stainless steel cabinets and it is among its most remarkable feature that sets our equipment apart from similar products offered.

PRODUCTS AND THE ENVIRONMENT

Faced with today’s tough environmental challenges and with global warming, we are more committed than ever to develop solutions which will utilize sustainable energy sources in order to conserve our planet’s non-renewable reserves of fossil fuels, striving to help create a greener environment. Our GEOCOOL series uses the R-410A that is chlorine free and non-depleting refrigerant. This helps not only to save money on energy bills but also helps to reduce carbon dioxide emissions in the atmosphere in essence helping control global warming.

SUPERIOR COMFORT / QUIET

The geothermal heat pump is entirely automatic in operation providing heating, cooling and hot water with a centrally located heat/cool thermostat. With GHPs, there are no outside condensing units like air conditioners. Units are designed and manufactured for “whisper quiet” operation, much like your refrigerator.

COST EFFECTIVE

Geothermal heat pumps save money in operating and maintenance costs. While the initial purchase price of a residential GHP system is often higher than that of a comparable gas-fired furnace and central air-conditioning system, it is more efficient, thereby saving money every month.

DURABILITY

Because they use fewer mechanical components, and because those components are sheltered from the elements, leaves, dirt, and possible vandalism, geothermal heat pumps are durable and highly reliable.

RELIABLE

Unlike heat pumps and air conditioners, geothermal units are installed indoors so they are not subjected to wear and tear caused by the outdoor elements, debris, or vandalism.

LOW MAINTENANCE

Geothermal heat pump systems have fewer maintenance requirements than most other systems. When properly installed, the underground components are virtually worry free.

DESIGN AND INSTALLATION

The consumer should insist that a qualified and experienced contractor, who has received training at a recognized institution install the system.

ENVIRONMENTALLY FRIENDLY

GHPs emit no carbon dioxide, carbon monoxide or other greenhouse gasses which are considered major contributing factors to air pollution.
